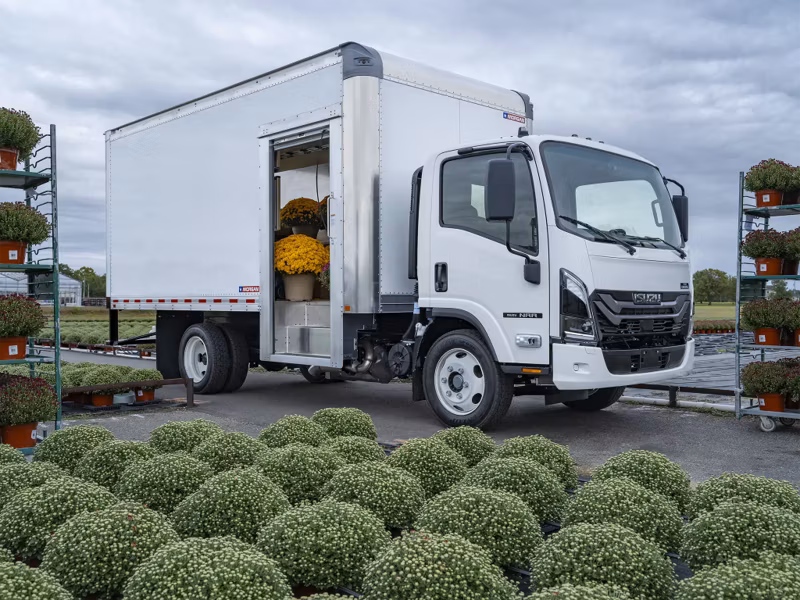

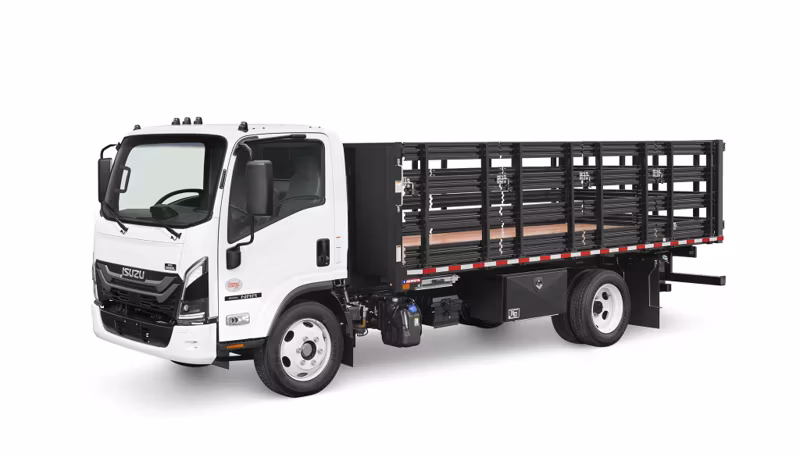

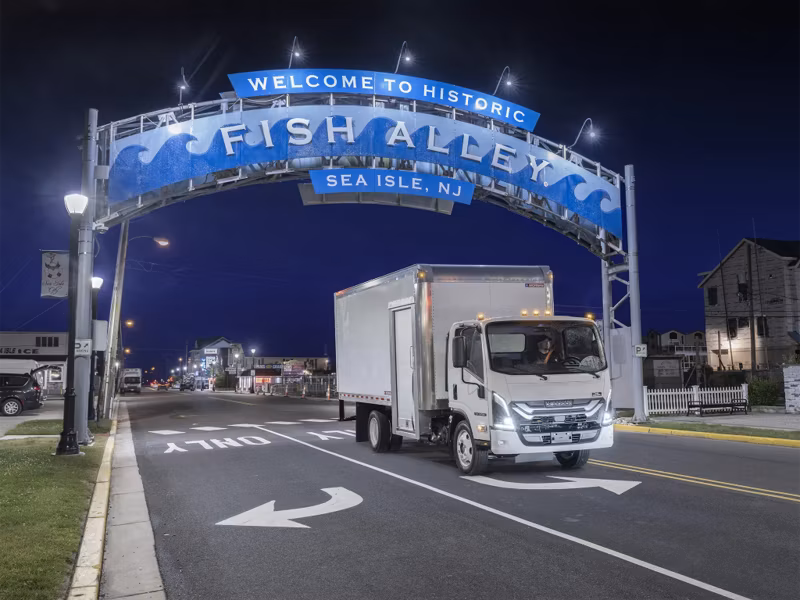

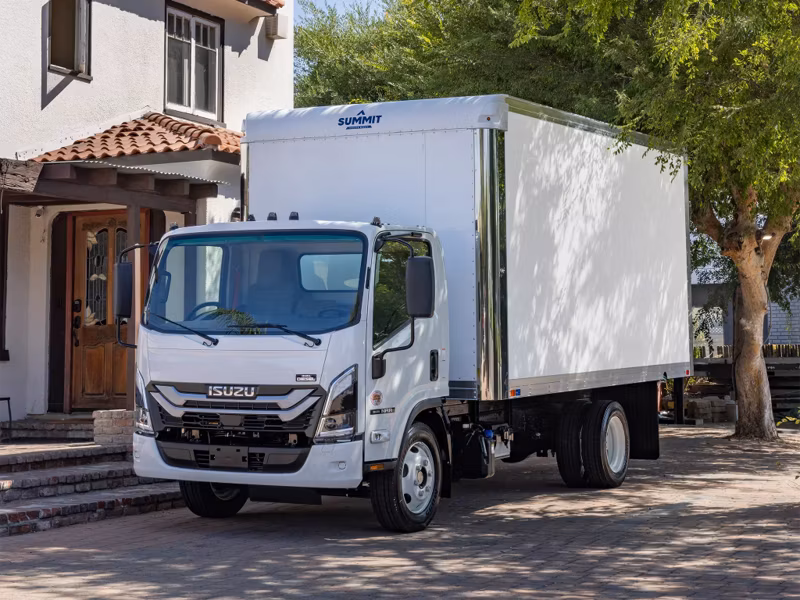

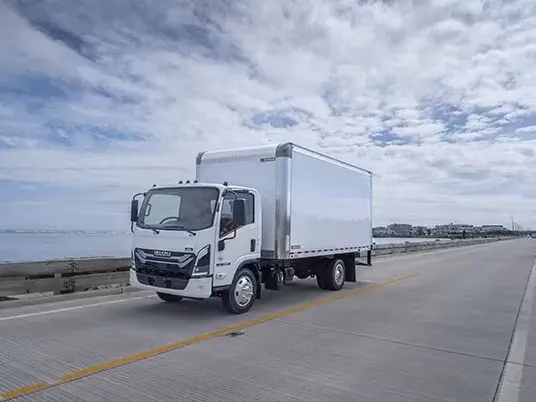

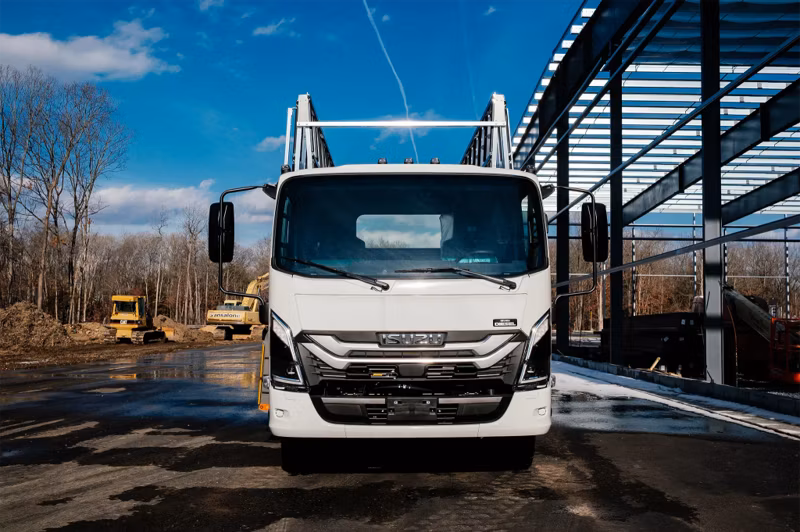

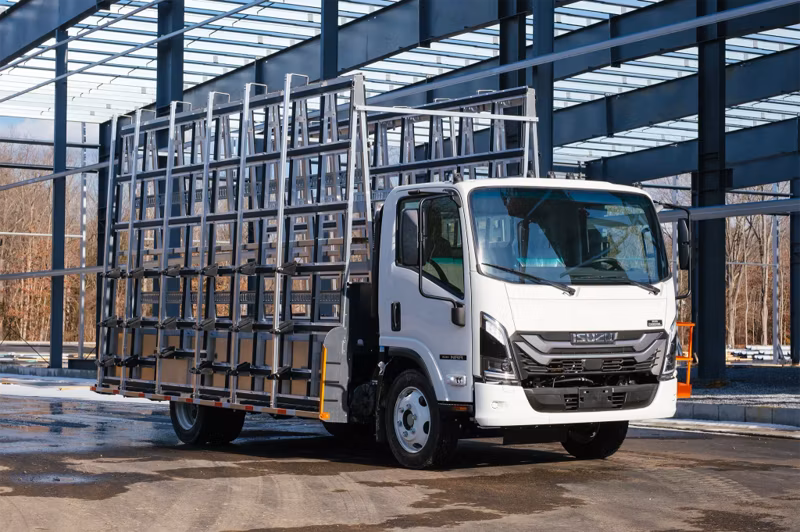

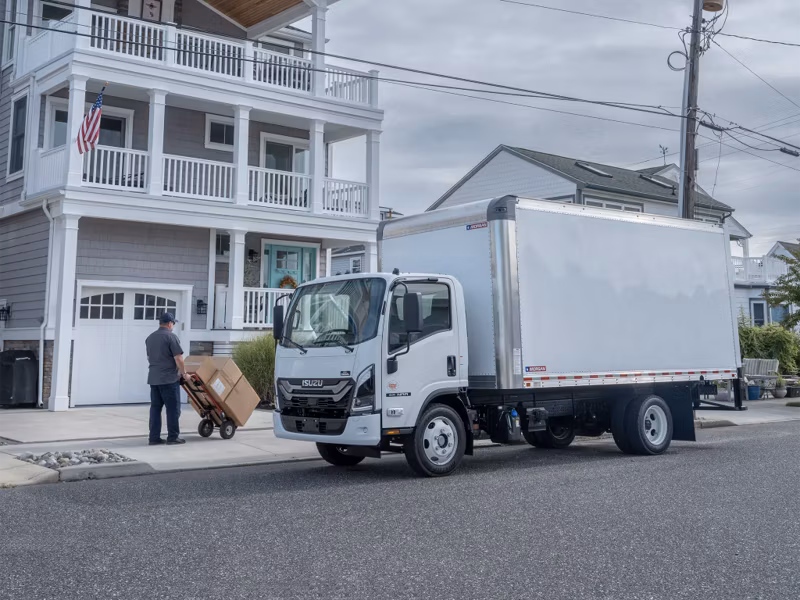

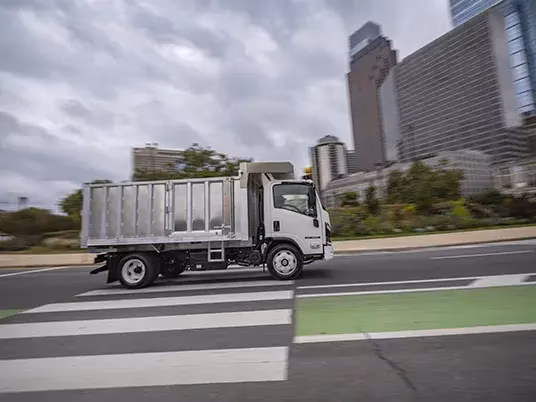

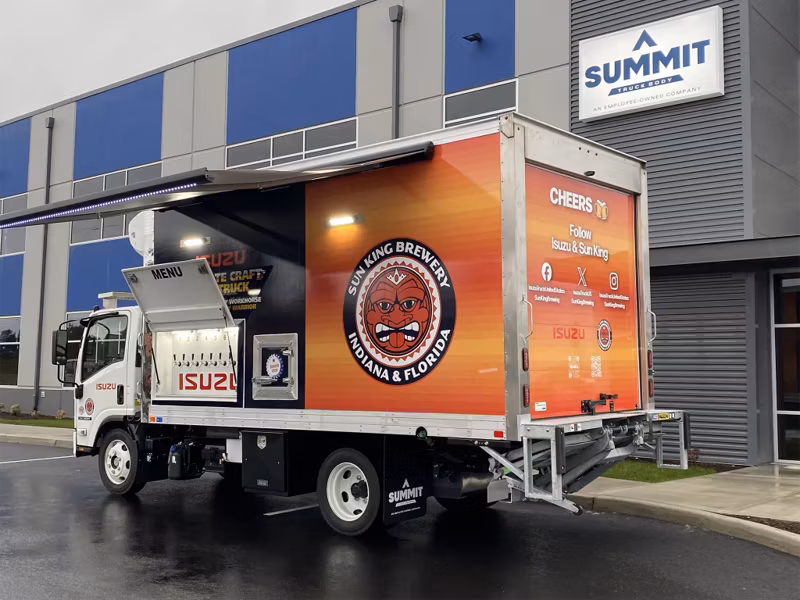

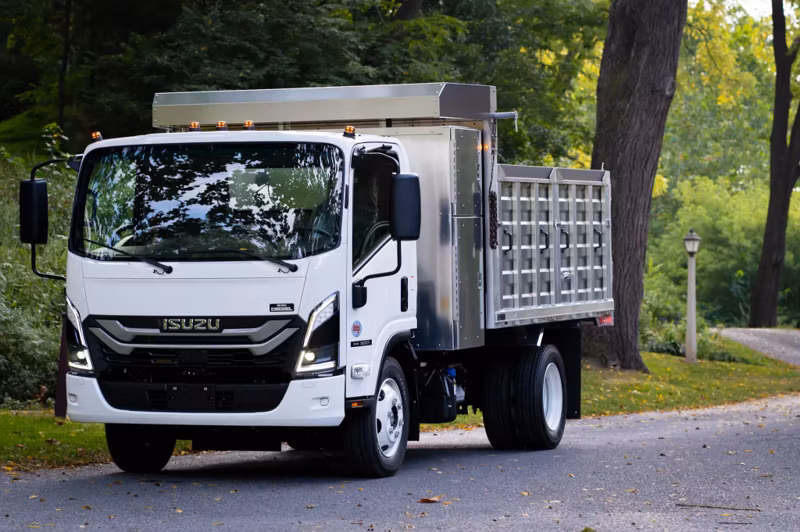

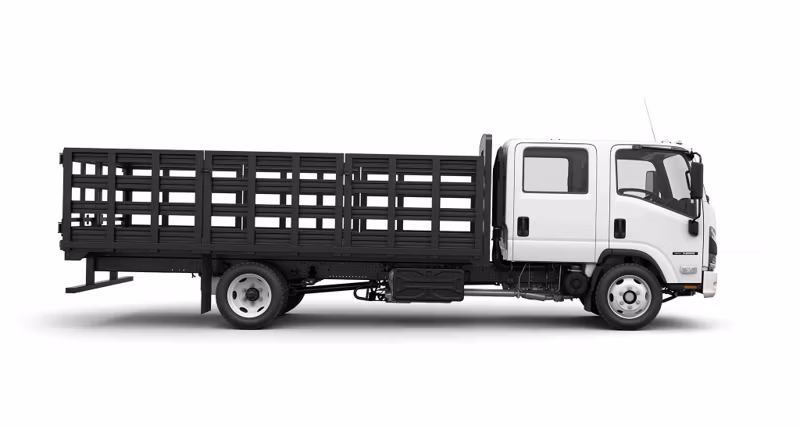

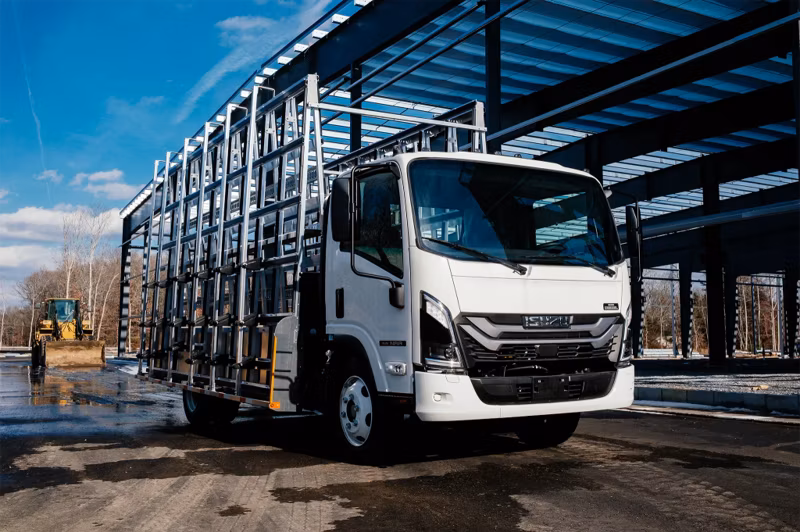

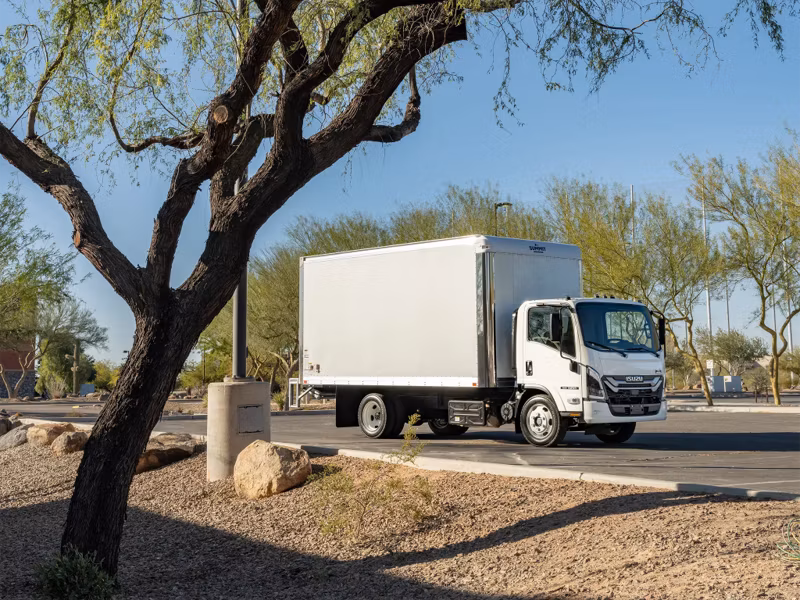

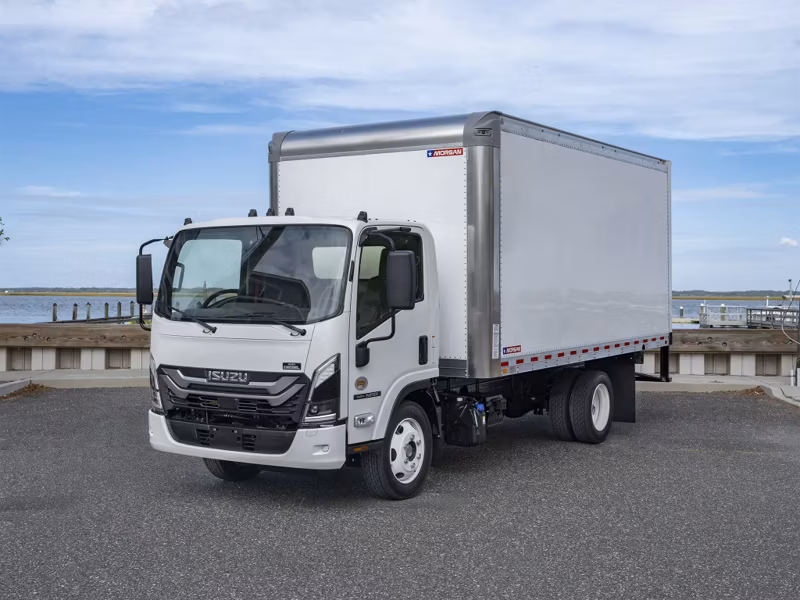

2026 Isuzu NRR Derate Standard Cab (Class 5 Diesel)
Cab / Chassis TrucksN Series Diesel
Description
High-performance compaction Experience high-performance compaction on any terrain type with the PTR240 distributed by Volvo Construction Equipment. Designed for roadway construction, resurfacing applications, and even sub-base compaction, the eight-wheeled pneumatic tire roller utilized kneading action to compact hot and warm mix asphalt. For ship seal applications, the pneumatic tires press the aggregate into the binder with fracturing. Enjoy ease of operation and high efficiency thanks to the PTR240, built to finish the job on time and under budget.
Specifications
Manufacturer
Isuzu
Model
NRR Derate Standard Cab (Class 5 Diesel)
Year
2026
Category
Cab / Chassis Trucks
Subcategory
N Series Diesel
Class
5
GVWR
17,950 lbs
GCWR
23,950 lbs
Body Payloads Standard Cab
11,420 lbs
Chassis GAWR (Front/Rear)
6,830 lbs / 12,980 lbs
Chassis Axle Capacity (Front/Rear)
7,275 lbs / 14,550 lbs
Chassis Rear Axle Ratio
5.571
Frame Standard Cab
Ladder type channel section straight frame rail 33.5 in. wide through the total length of the frame. Yield strength 54,800 psi section modulus 6.65 cubic in, RBM 364,420 lb.-in per rail.

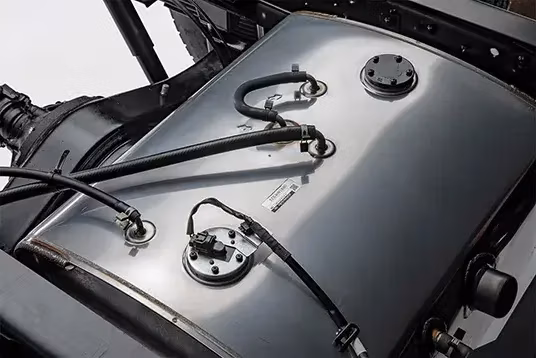

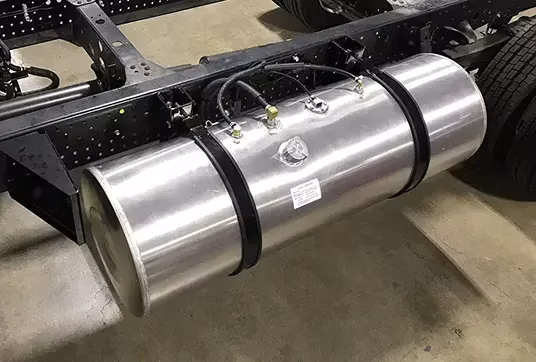

Fuel Tank (Standard)
30-gal in-frame
Brakes Service
Vacuum+Power Assist/ Hydraulic with 4-Channel ABS/Front and Rear Disc
Suspension (Front/Rear) Type
Tapered/Multi-Leaf
Suspension (Front/Rear) Capacity
8,440 lbs / 14,550 lbs
Suspension (Front/Rear) Tires LRR (Low Rolling Resistance)
225/70R-19.5F/G (12-PR) Tires
Standard Cab Wheelbase (in) 109 Curb Weight
6,530 lbs
Standard Cab Wheelbase (in) 132.5 Curb Weight one
6,612 lbs
Standard Cab Wheelbase (in) 150 Curb Weight two
6,632 lbs
Standard Cab Wheelbase (in) 176 Curb Weight three
6,679 lbs
Standard Cab Wheelbase (in) 200 Curb Weight four
6,981 lbs
Standard Cab Wheelbase (in) 109 Body Payload
11,420 lbs
Standard Cab Wheelbase (in) 132.5 Body Payload one
11,338 lbs
Standard Cab Wheelbase (in) 150 Body Payload two
11,318 lbs
Standard Cab Wheelbase (in) 176 Body Payload three
11,271 lbs
Standard Cab Wheelbase (in) 200 Body Payload four
10,969 lbs
Powertrain
Isuzu 4HK1-TC 5.2L (317 cu. in.) 215-hp @ 2,500 rpm 452 lb.-ft @ 1,850 rpm
Transmission
Aisin A465id 6-speed auto. w/double overdrive and lock-up 2nd-6th gears
Chassis Body Lengths Standard Cab
10 to 22 ft
Batteries
2 Maintenance-Free Group 31 750-CCA
Alternator
140-amp
